Columbia & Western Railway, by Mark Dance



Columbia & Western Railway

An N scale railroad model by Mark Dance, Vancouver (BC, Canada)



How I "met" the Columbia & Western Railway

End of December 2013, I re-visited the BAE Braunlage Andreasberger Eisenbahn by OOK Otto O. Kurbjuweit. Photos and Videos you will find here.

The BAE got an excellent publication in the LDJ #38, the "Layout Design Journal" by the LDSIG "Layout Design Special Interest Group".

On January 1st, 2014, the LDJ 38 came back in my hands, and I re-read the BAE article.

In the same #38, there is a 9 page article about the Columbia & Western Railway, by Mark Dance.

I have read the Columbia & Western article with great interest when the magazine was published in summer 2008. And re-read it now. How will it look today, I asked myself. And began to search the web. What I found out was very informative for me, and I am glad that Mark Dance permitted me to set up this web page, and to illustrate it with his photos and graphics. Thank you, Mark!



Track plans of Columbia & Western Railway






Schematic Track Plan.
Comment for orientation North / West: At the Columbia & Western Railway, in most cases the "west" is to the right and "east" is to the left because on the prototype the rails follow the south or eastern side of the water features. This is practiced on this map, too. Please have a look at the "North" arrow on the map to get oriented.



Located in Google MyMaps:

01 Canada

Location: British Columbia, Canada



02 West Overv

getting closer



05 Area Overv

the area modeled



15 North

north part



10 South

south part



Track Plan by Mark Dance:


Waterline Layer






Farron Layer



Overview photos




Photo taken from South Slocan,

view to West side of Nelson (lower layer)

and Snow Shed #1 on upper layer. East part of Coykendahl is on the left (upper layer).






Photo taken at Coykendahl:

Lower layer: Nelson (east part)

Upper layer: Farron (right side and middle), west part of Coykendahl (left)

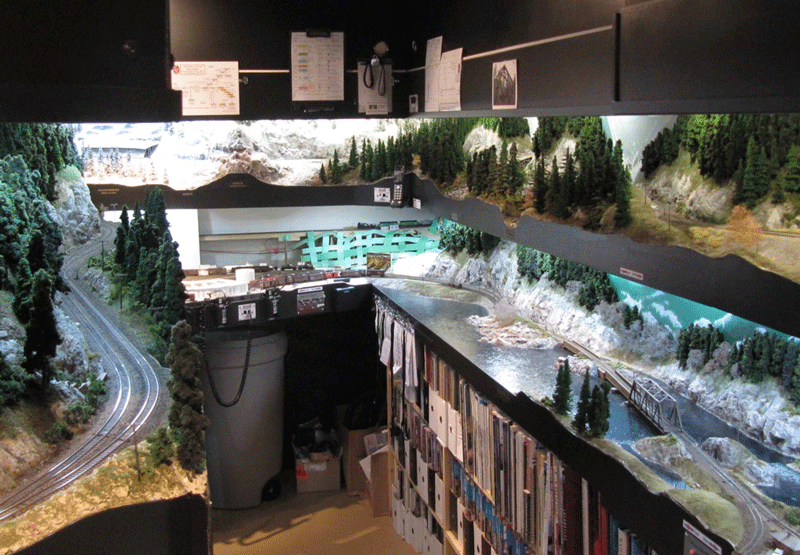

Photo taken at corner of room at east end of Nelson

Lower layer: bridges of Kootenay River, South Slocan (with gate 3 opened, therefore not visible), and Castlegar in the background

Upper layer: Fife/Lafferty on the left, Kettle River Bridge in the middle, Coykendahl on the right






Upper layer: Shields



Snow Area






Snow plow train coming from Coykendahl, and moving west towards Farron






towards first switch of Farron






Farron: meet with a steam train




west switch of Farron






Snow plow train left Farron and continues west






Pushers at Snow Shed #1






Snow Shed #1, view from other side









Kaslo Subdivision / Slocan Branch

The Slocan Branch hooked me when first looking at the railway system map of the Columbia & Western.

This is a branch which only can be reached by using rail barges which move over the Slocan Lake, from Slocan City to Rosebery.




Rosebery / Nakusp Layer




The Kaslo Subdivision is inside the "Mushroom". Slocan City is on the lower (= "Waterline") layer, where Mark is operating at the moment.

Some time later he moved:








The Nakusp layer is where Mark is now operating trains. Mark is standing on a platform which is removed while operating the Slocan City layer.

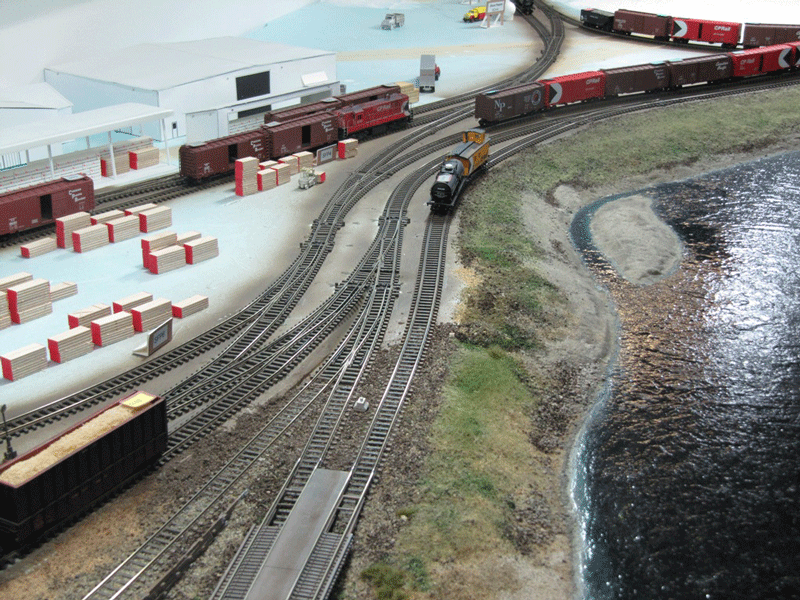

Slocan City with huge wood processing plant







Slocan City is the "End of Rail" from Nelson. Here, the entire train (locomotive, cars, caboose) is loaded onto a rail barge














The barge leaves Slocan City, and is pushed up the Slocan Lake, towards Rosebery



This journey is performed up the lake, and on Mark's railroad model ...






by air transport: the barge including train is lifted up to the elevated layer






barge up: locations on the track plans






Barge arrived at Rosebery









Rosebery, at the barge slip. The train in the background is moving from Hills into Rosebery yard




North part of Rosebery




South side of Rosebery. The track in the background to the right is moving towards New Denver Staging






Up to the North: Hills






Wye of New Nakusp




Old Nakusp




New Nakusp with wye in the background, Old Nakusp in foreground






Old Nakusp, North end of Kaslo Subdivision



Video: Rail Barge operations





Here is a video by Mark Dance, which illustrates in detail the operation of the Slocan Lake rail barge: a train moves over slips at Slocan City, the lake, and Rosebery






Videos








Overview of the N scale Columbia and Western Model Railroad

Walking tour of entire line showing Nelson/Boundary subdivisions from Troupe to Cascade and Slocan/Kaslo subdivisions from South Slocan to Nakusp






Columbia and Western Overview 2 - Mechanical design and construction of 4 deck layout


Mechanical features including:
  • indexed storage table on level 1
  • staging
  • two helixes of different designs
  • double mushroom of decks 2 through 4
  • slide out floor for 4th level
  • three swing gates and one drop gate






Columbia and Western Overview 3 - Operational design



Including:

  • Digitrax DCC control and fast clock
  • switch control
  • time table and train instructions
  • car routing and labelling







Tag, Cup and Spreadsheet car forwarding on the C&W:

  • A car forwarding system using spreadsheets to develop demand, tags as waybills and paper cups to accumulate excess demand
  • Background, objectives, and elements of the system, then a demo and pros and cons



Video: Kootenay Valley Railway (Canadian Pacific) Cabride - Trail to Nelson, BC on an SD40-2, 2013

Here is a video of the real RR




This WebSite covers only some sections of this layout. There you will find further information:

Videos: Mark Dance's videos at YouTube

Photos: Mark Dance's photo page at Flickr






(c) 2014 Photos and Graphics by Mark Dance, Vancouver, BC, Canada. Published with permission.
